Air Grain Separator SZ-2

The SZ-2 air grain separator is an efficient machine designed for the pre-cleaning of cereals and legumes from light impurities such as dust, chaff, husks and other unwanted fractions. The machine is suitable for farms and facilities involved in grain storage and preparation for further processing.

Using the separator before storage helps reduce the amount of light impurities entering silos together with the grain. This improves storage conditions and reduces the risk of deterioration, grain self-heating and other undesirable processes.

The SZ-2 can also be used as part of the grain preparation process before drying and seed treatment. Removing dust and light fractions before subsequent processing stages can improve process efficiency and reduce the consumption of treatment agents.

Operating principle

Grain mixed with light impurities enters the separator, where the individual fractions are separated. Lighter particles such as dust, chaff and husks are separated from the main grain stream and directed to the dust collection system.

The cleaned grain leaves the machine and can be directed to subsequent processing stages, including drying, storage, conveying or further processing.

Main advantages

• capacity of up to 30 t/h,
• effective removal of light impurities,
• reduced dust levels during grain processing,
• improved grain storage conditions,
• grain preparation before drying and seed treatment,
• energy-efficient electric drive,
• mobile and functional design,
• possibility of integration with conveying equipment,
• simple installation and operation.

Applications

The SZ-2 separator is designed for cleaning:

• cereals,
• legumes,
• grain intended for storage,
• raw material prepared for drying,
• grain before seed treatment,
• raw material intended for further processing.

The machine can operate with various conveying systems, including screw conveyors, flexible conveyors and bucket elevators, allowing easy integration into an existing process line.

Standard equipment

• cyclone,
• 2 m connecting pipe for connecting the separation and dust collection systems,
• set of support legs for mounting the dust collection cyclone.

Technical specifications

• capacity: up to 30 t/h,
• electric motor power: 7.5 kW / 3000 rpm,
• power supply: 400 V / 50 Hz,

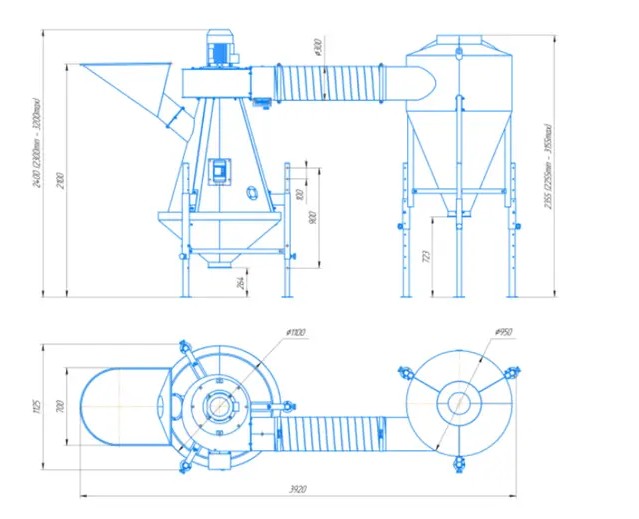

• dimensions (L×W×H): 3920 × 1125 × 3200 mm,
• weight: 420 kg.

The SZ-2 air grain separator is a practical solution for farms and businesses requiring effective grain cleaning before storage or further processing. High capacity, an energy-efficient electric drive and the possibility of integration with conveying systems make it easy to incorporate the machine into an existing processing line.
