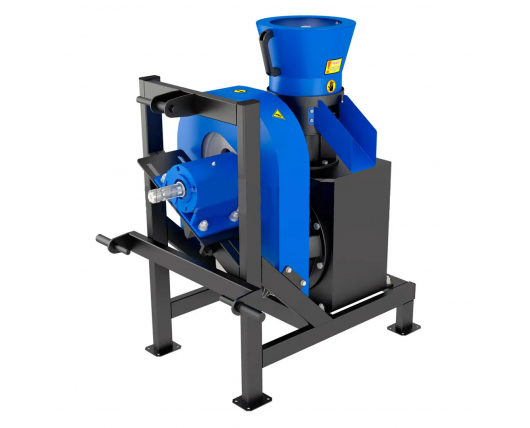

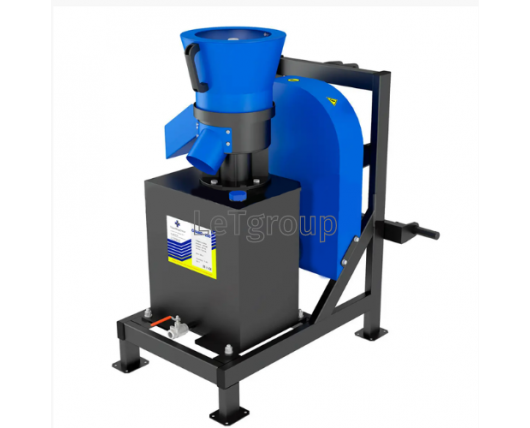

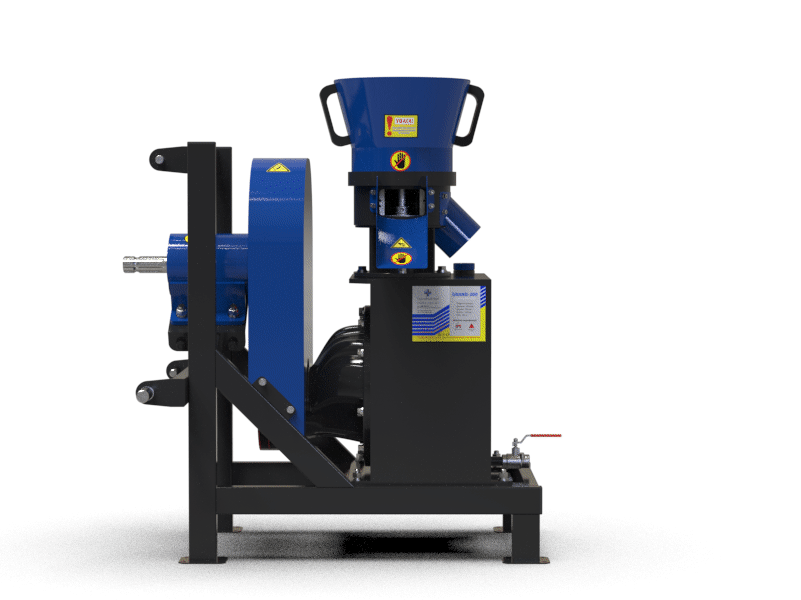

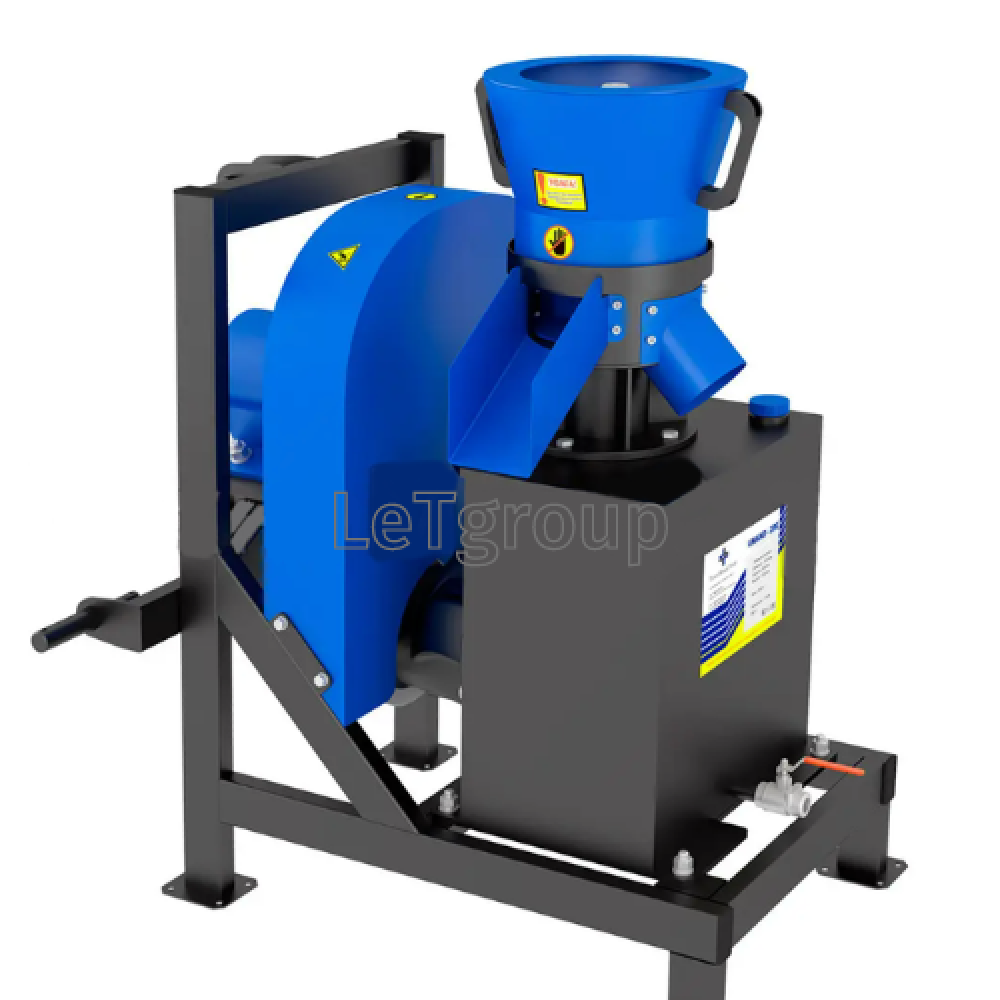

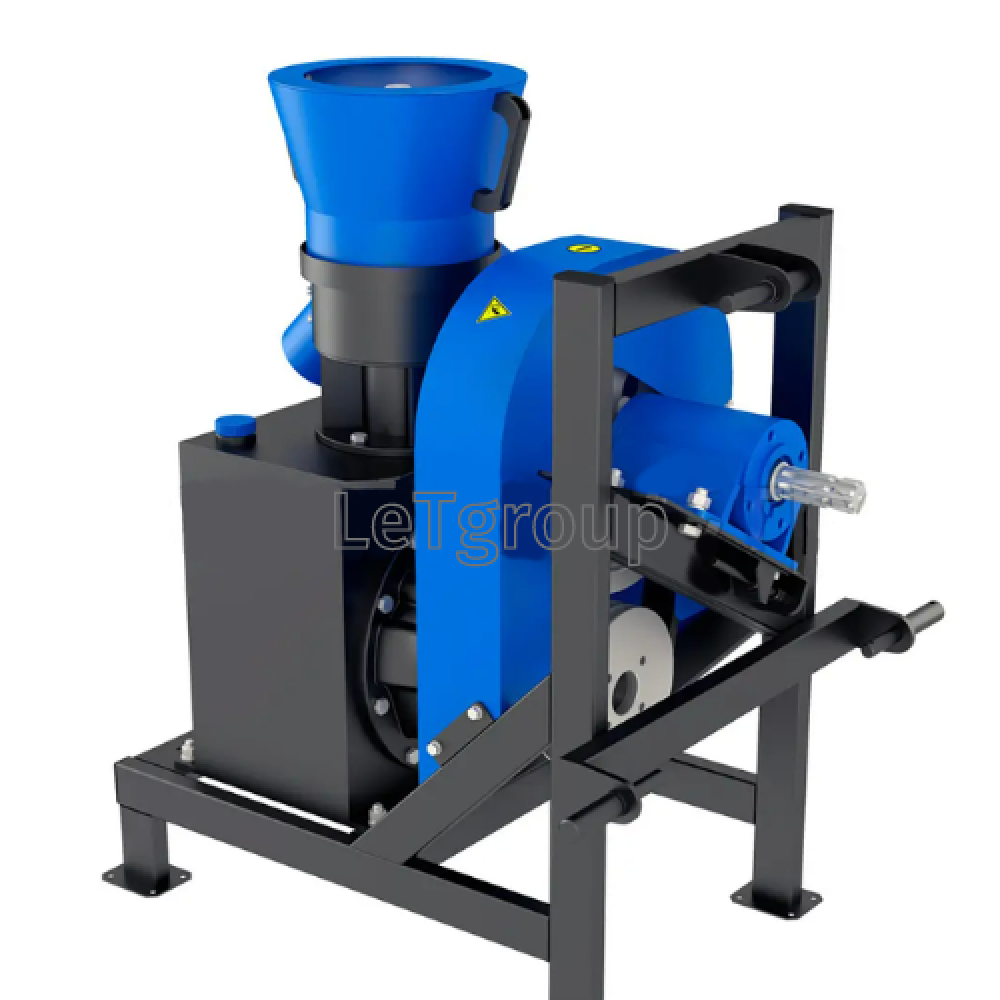

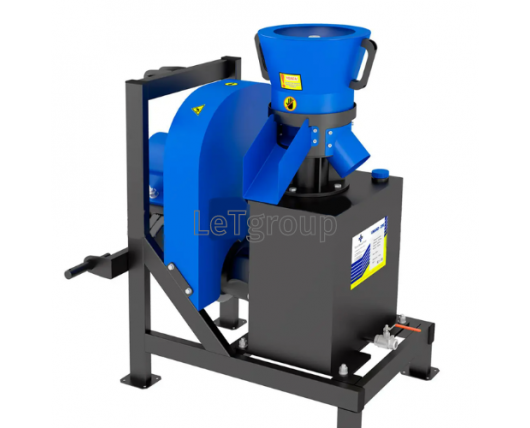

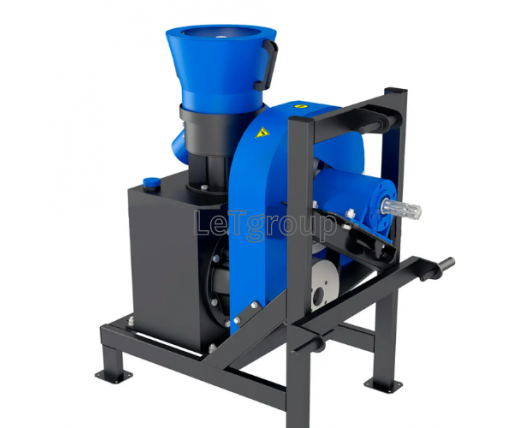

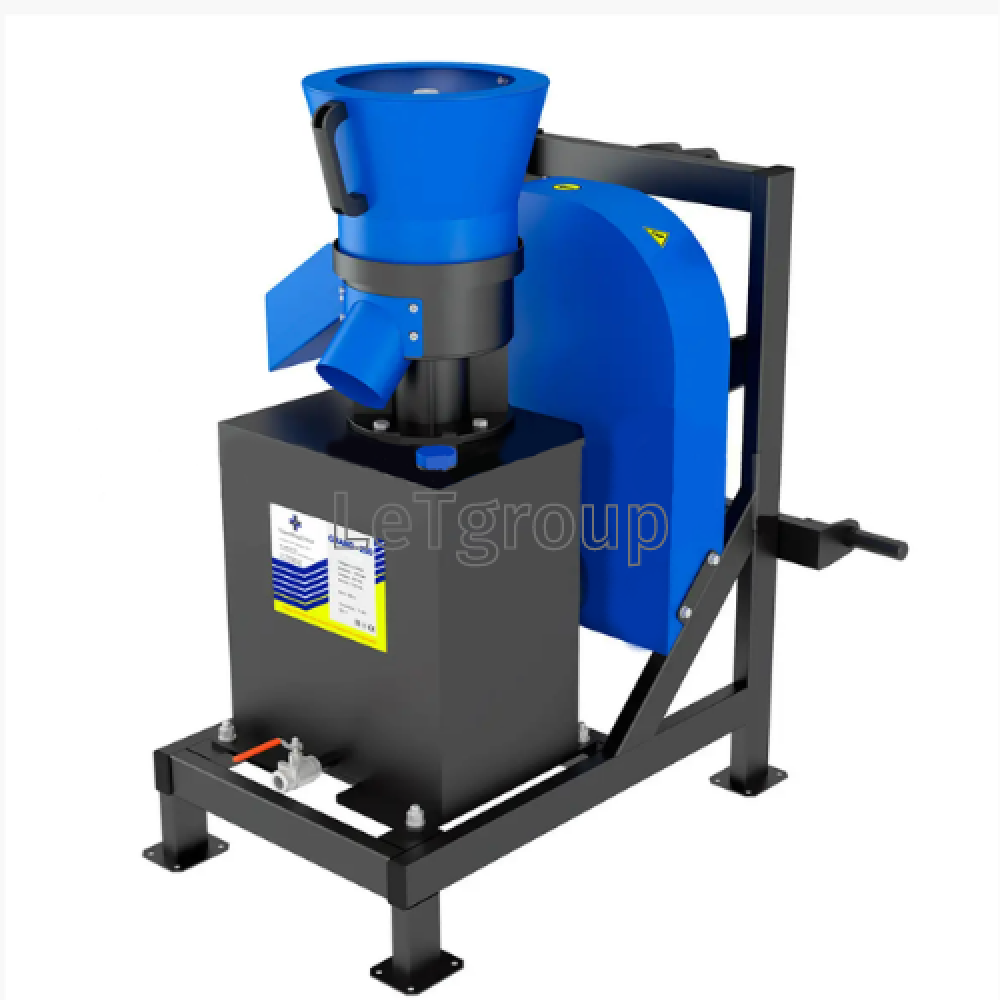

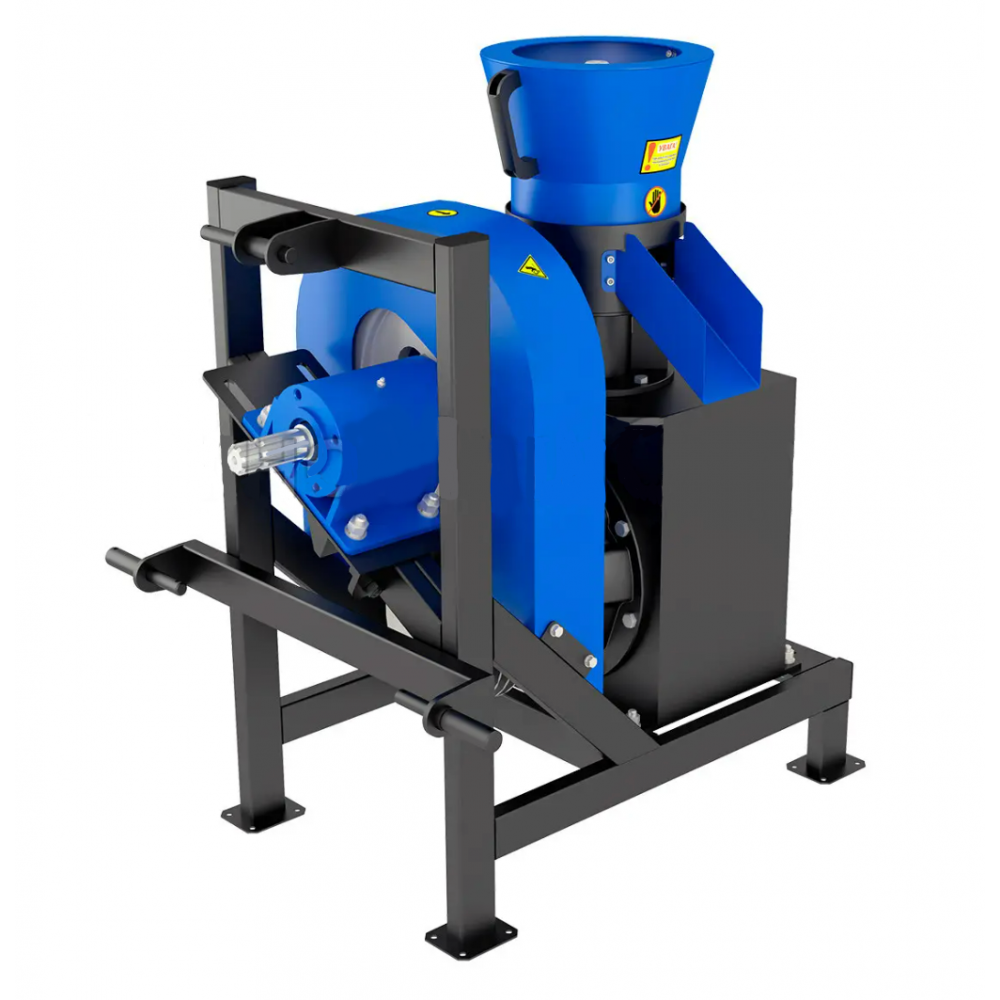

GRAND-200 Pellet Mill/ Feed granulator on PTO

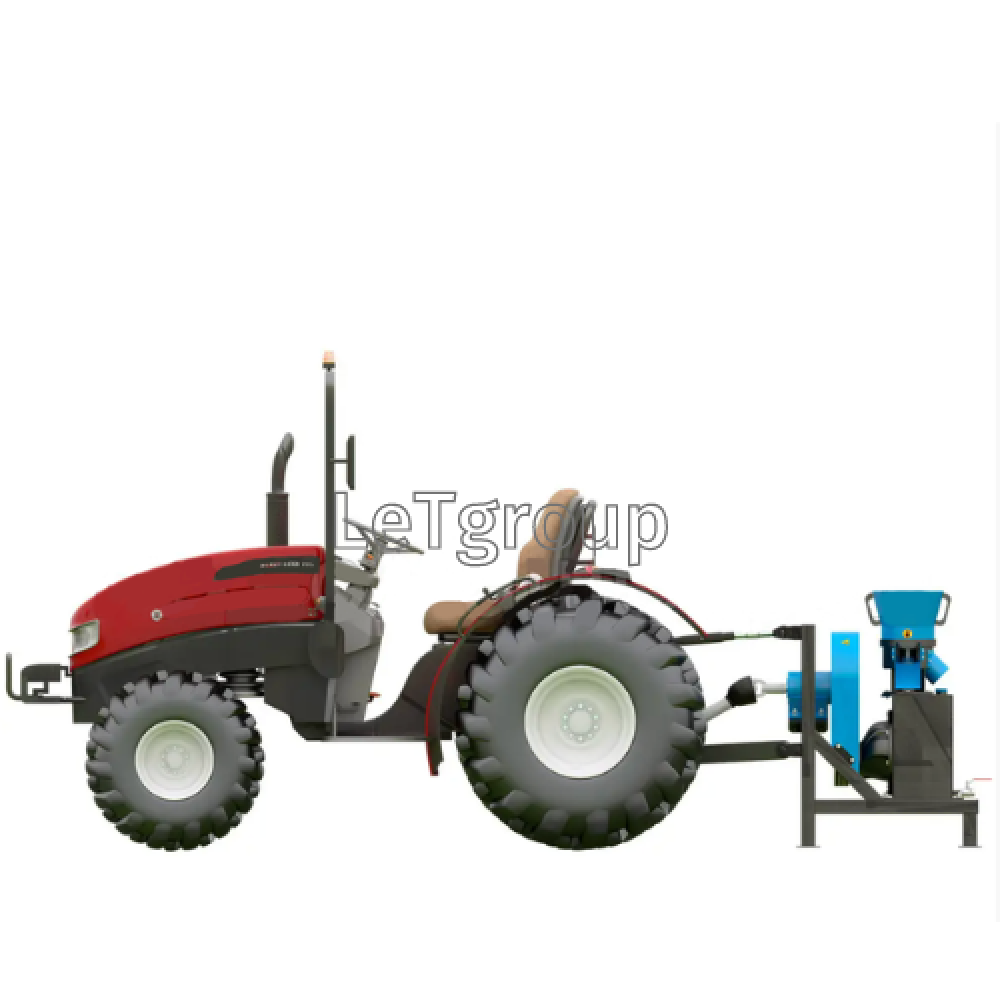

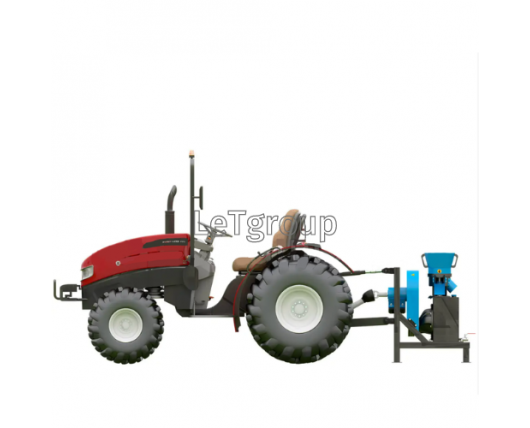

The Grand-200 PTO Pellet Mill is a modern machine designed for fieldwork – directly where the raw material is located, or in places with limited access to a strong power grid. The machine uses the tractor’s Power Take-Off (PTO) shaft, transmitting power through a cardan shaft equipped with a friction clutch, ensuring reliability and operational safety.

At the heart of the pellet mill is a solid working module with a stationary die (Ø216 mm) and rotating rollers, providing efficient and stable pelletizing. Thanks to this design, the machine can easily handle the production of both high-digestibility feed and fuel pellets from various types of biomass.

We invite you to test the pelletizing of your material on our pellet mill in our warehouse!

Grand-200 PTO easily processes:

sawdust from coniferous and deciduous trees,
straw, hay, grass, sunflower husk,
feed mixtures and grain waste,
as well as plastics.

Performance:

sawdust – up to 150 kg/h,
straw / hay – up to 120 kg/h,
feed mixtures – up to 300 kg/h,
sunflower husk – up to 150 kg/h,
grain waste – up to 180 kg/h.

Thanks to interchangeable dies adapted to specific types of biomass or feed, the machine is extremely versatile.

Key advantages of Grand-200 PTO:

operation directly in the field, without the need for grid power supply,
rotating rollers and durable gearbox,
ability to pelletize even hard sawdust,
die diameter: 216 mm,
die service life – approx. 70 tons of material (with regeneration option),
drive power: above 15 HP,
working speed: approx. 500 rpm.

*WE PROVIDE A SPECIAL ROLLER TIGHTENING WRENCH FOR FREE!

The Grand-200 PTO Pellet Mill is a reliable solution for farms and biomass processing enterprises that value mobility, cost-efficiency, and wide production capabilities.

Specification

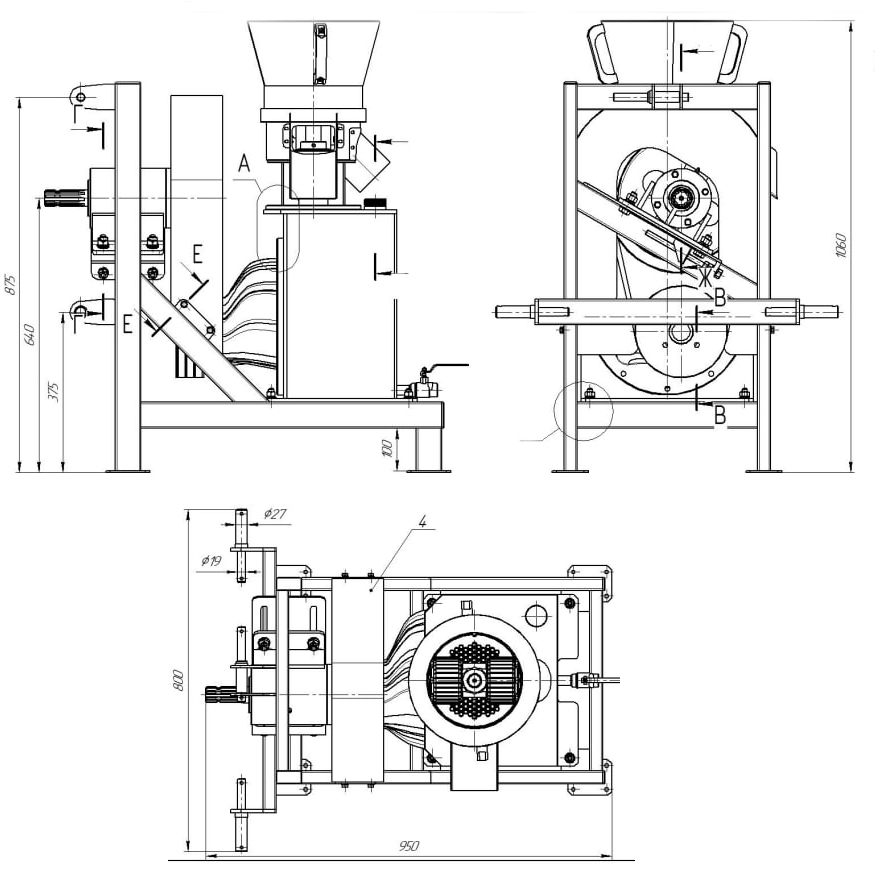

Product dimensions

Length 950,0 (mm)

Width 650,0 (mm)

Height 1150,0 (mm)

Features

Product Weight 350,0 (kg)

Producer LabEcoTech

Usage For loose materials

Efficiency Pellets - 150 kg / h Feed - 350 kg / h Straw / Hay - up to 120 kg/h

Rotation speed per minute 130,0 (rpm)

Drive type Power take-off shaft

Matrix size 216,0 (mm)

Number of knives 2 (pcs.)

Additional information

Guarantee 12 month

Number of rollers 2 (pcs.)

Video review

The kit includes:

Granulator 1 pcs
Manual 1 pcs
Key for dismantling the matrix 1 pcs
Matrix 2-8 mm (By choice) 1 pcs
Cardan shaft with friction clutch 1pcs
