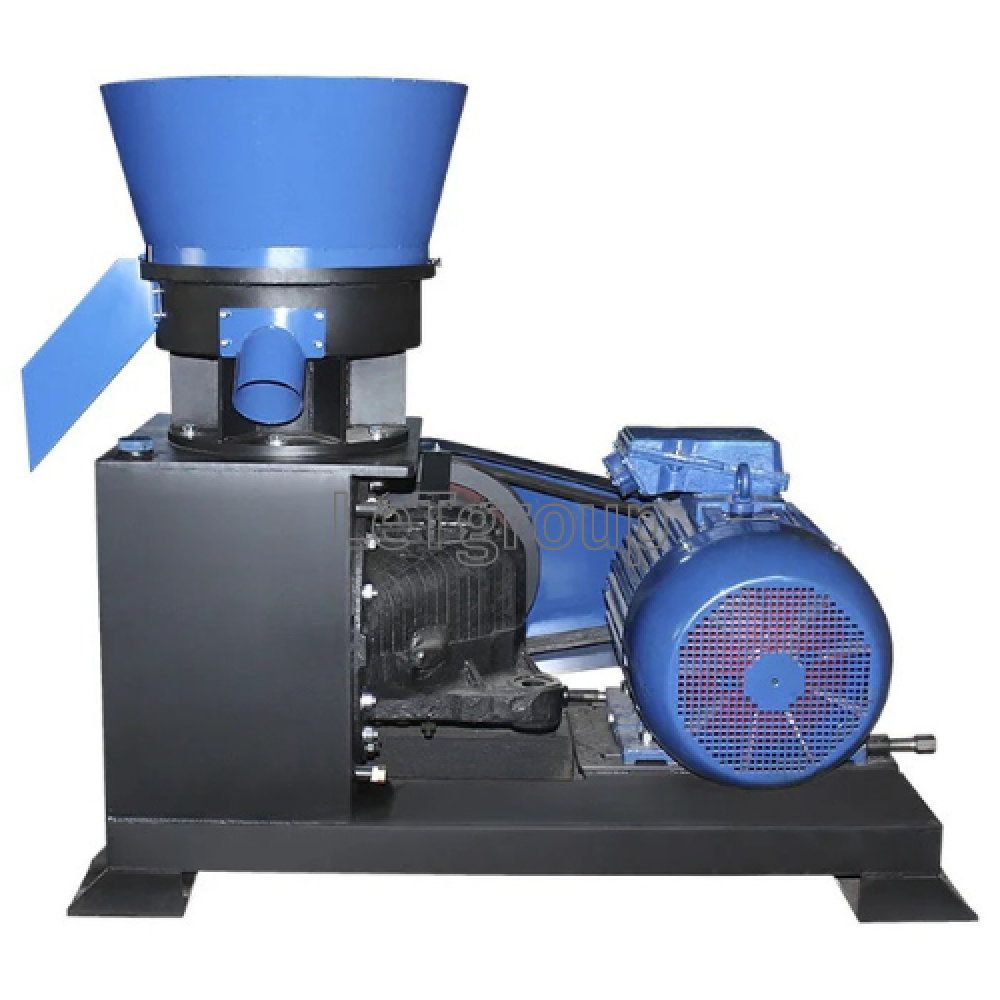

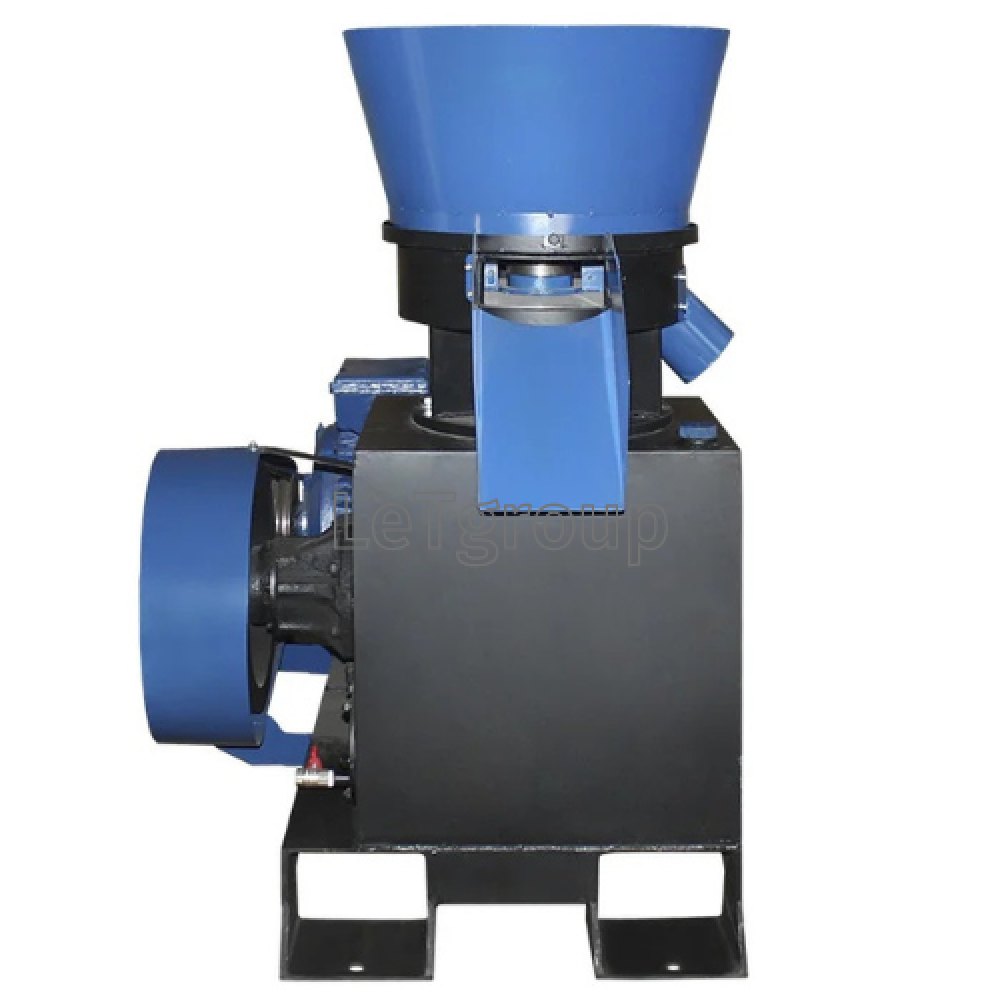

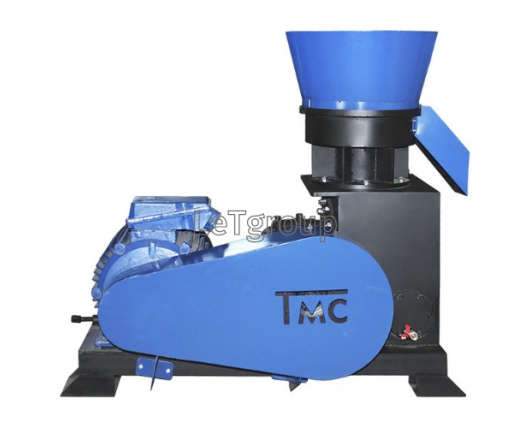

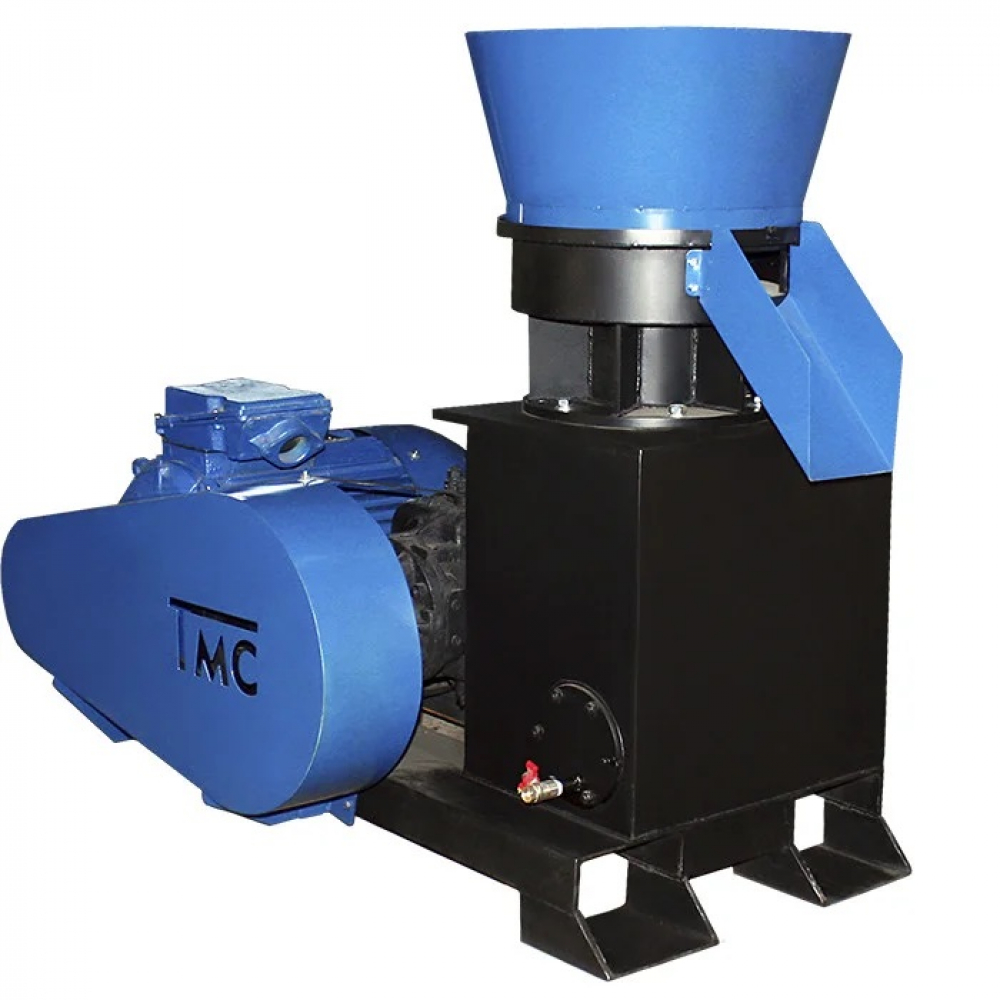

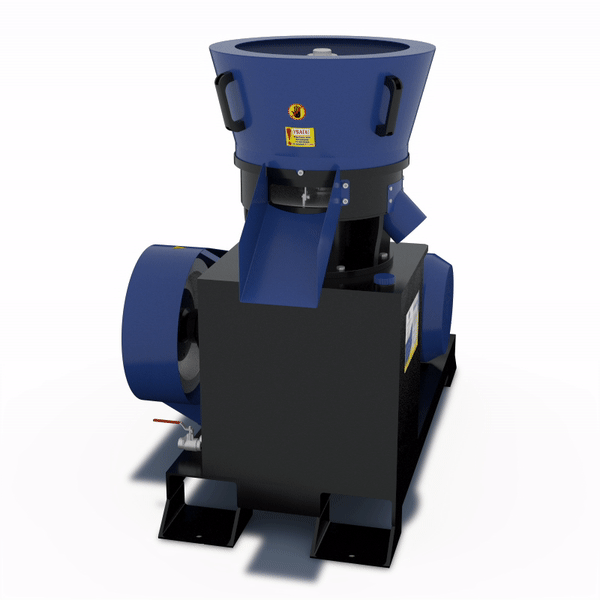

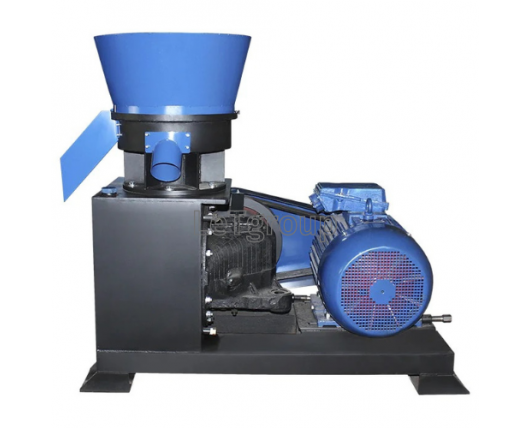

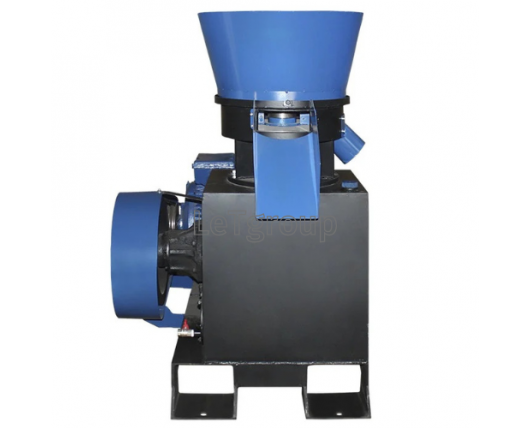

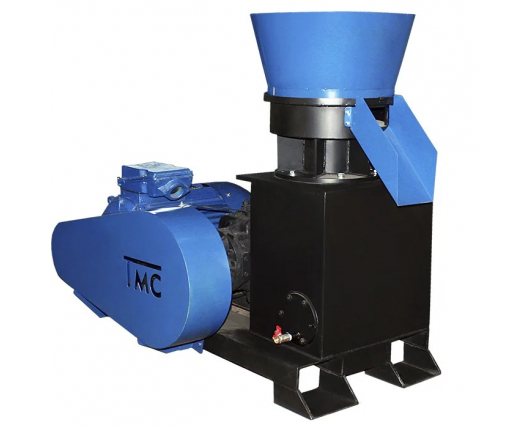

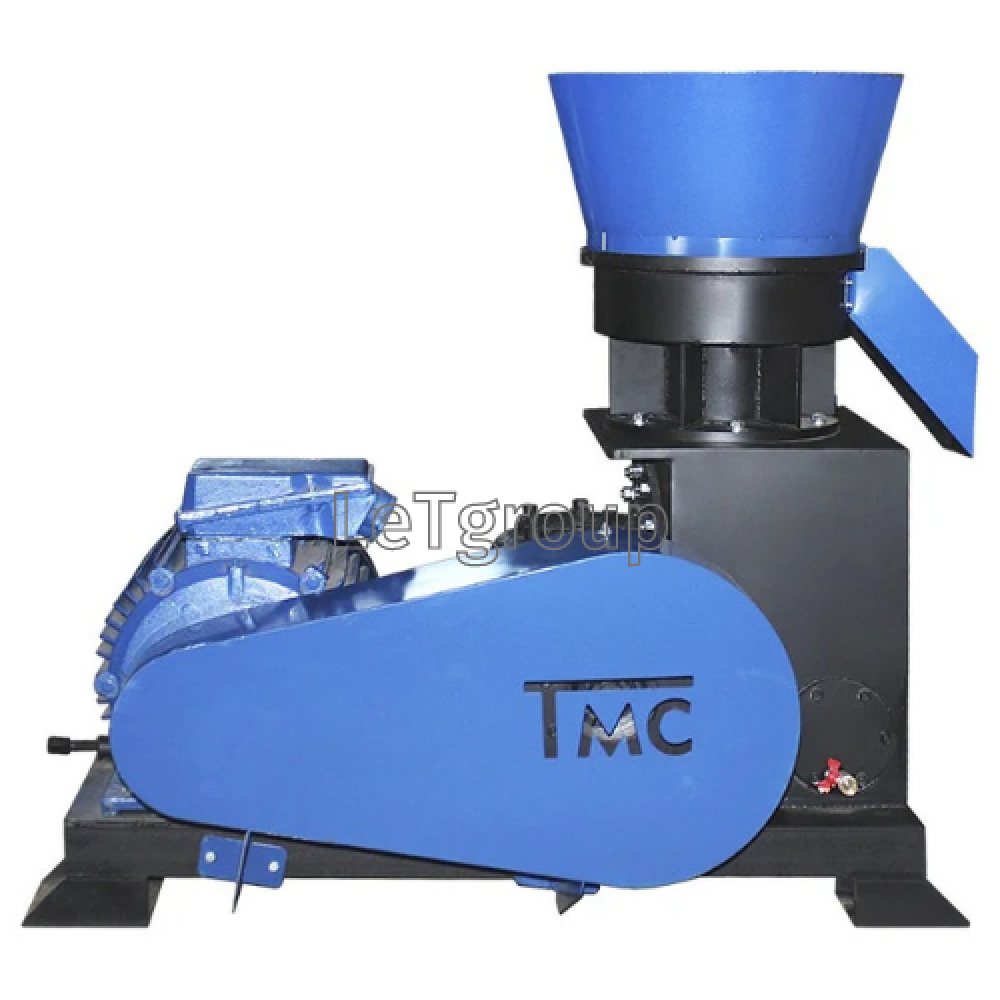

Pellet machine / Granulator GRAND-400 / 37 kW, 380W

The GRAND-400 is a powerful and reliable new-generation pellet mill, designed for intensive production of fuel pellets and animal feed. Thanks to its 37 kW three-phase motor, the machine ensures high efficiency and the ability to operate continuously for up to 12 hours without interruption.

This granulator is perfect for processing a wide range of raw materials, including grain and grass mixtures, straw, hay, softwood and hardwood sawdust, sunflower husk, and post-harvest residues.

We invite you to test your material on our pellet mill at our warehouse!

Equipment & Features:

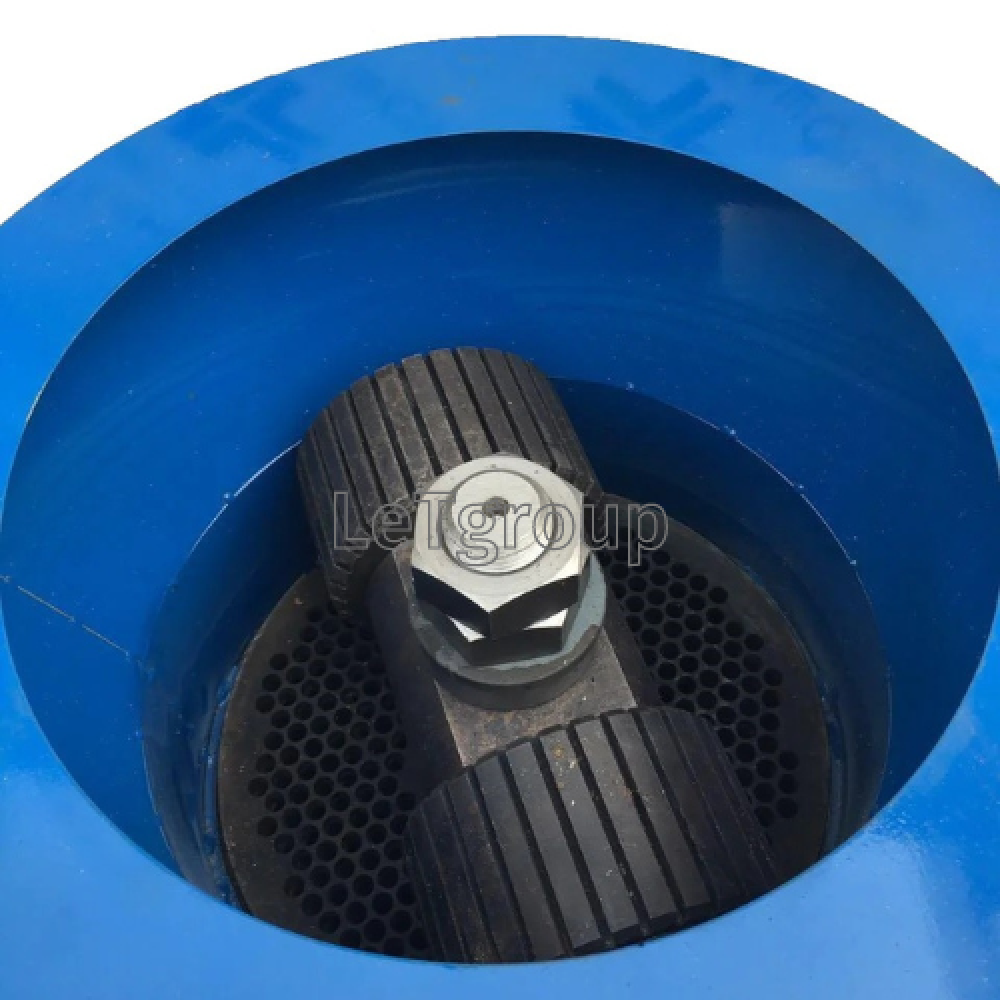

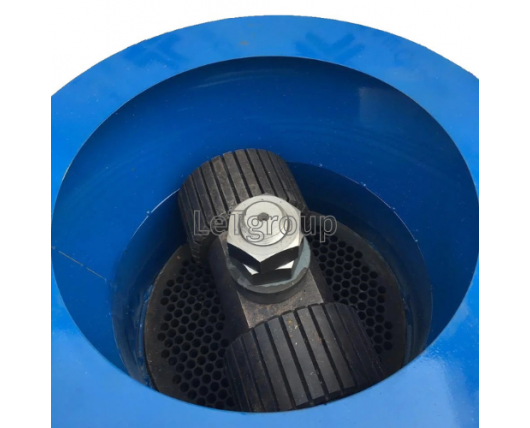

400 mm die with holes ranging from 2 to 8 mm (customizable to your needs).
Adjustable cutter – allows you to control pellet length from 2 to 60 mm.
Movable rollers & reinforced gearbox – guarantee stable performance and long service life.
Heavy-duty alloy steel construction – resistant to vibrations and high temperature during continuous operation.
Optional screw feeder – enables precise control of raw material feeding speed.

Productivity:

Pine sawdust – up to 500 kg/h
Straw (fine fraction) – up to 465 kg/h
Sunflower husk – up to 480 kg/h
Feed mix – up to 500 kg/h

Technical Specifications:

Motor power: 37 kW, 380 V
Rotation speed: 1500 rpm
Die diameter: 400 mm
Die hole size: 2–8 mm (customizable)
Roller diameter: 210 mm
Number of knives: 2 pcs

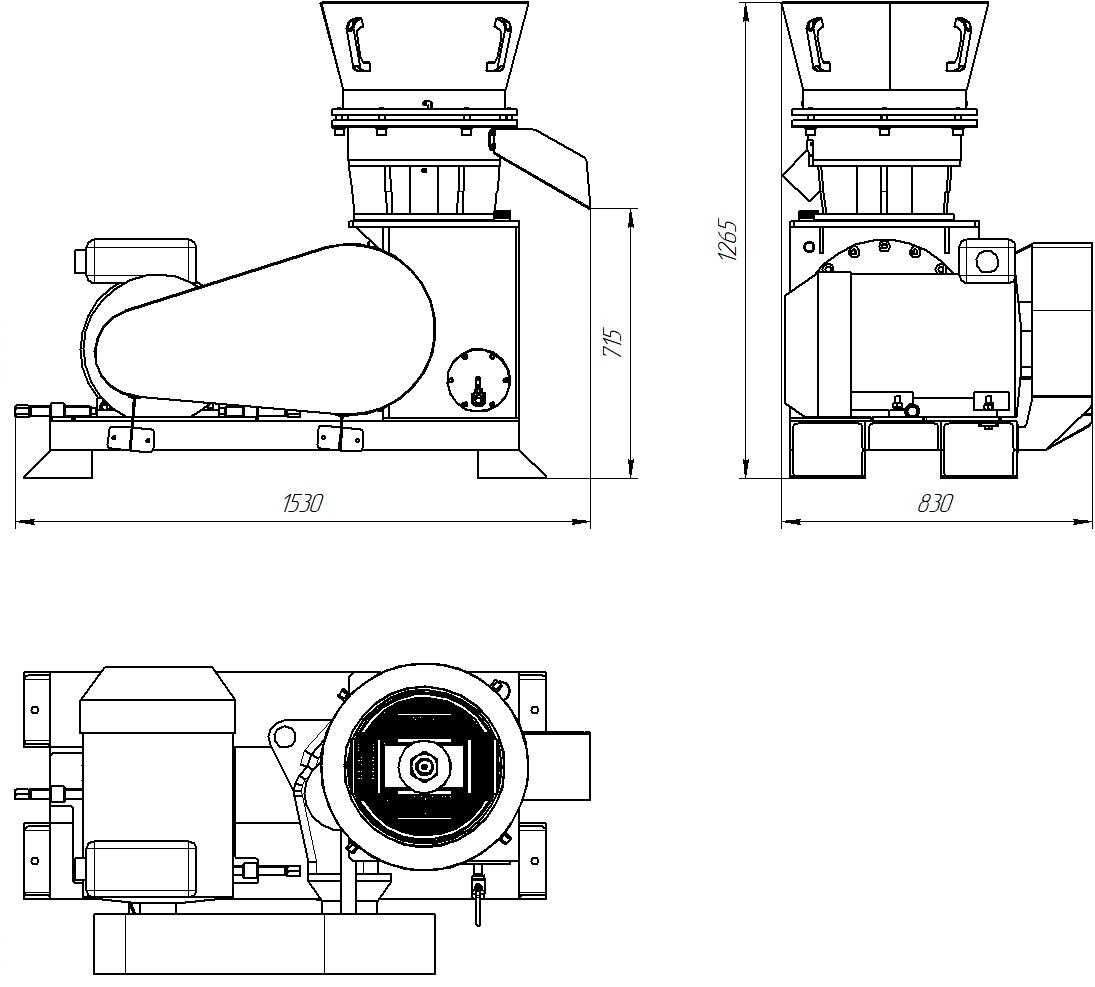

Dimensions: 1530 × 830 × 1265 mm
Weight: 800 kg

*BONUS: We include a special tool for tightening the rollers!

The GRAND-400 is an excellent solution for farms, production plants, and biomass processing companies looking for a professional and cost-effective pelletizing machine.

Specification

Product dimensions

Length 1530,0 (mm)

Width 830,0 (mm)

Height 1300,0 (mm)

Features

Product Weight 800,0 (kg)

Producer LabEcoTech

Usage For loose materials

Efficiency Pellets - 500 kg / h Feed - 500 kg / h Straw / Hay - up to 400 kg/h

Energy consumption 37 (kW)

Tension 380,0 (V)

Drive type Electric

Matrix size 400,0 (mm)

Number of knives 2 (pcs.)

Additional information

Guarantee 12 month

Number of rollers 2 (pcs.)

Video review

The kit includes:

Granulator 1 pcs
Manual 1 pcs
Key for dismantling the matrix 1 pcs
Matrix 2-8 mm (By choice) 1 pcs
