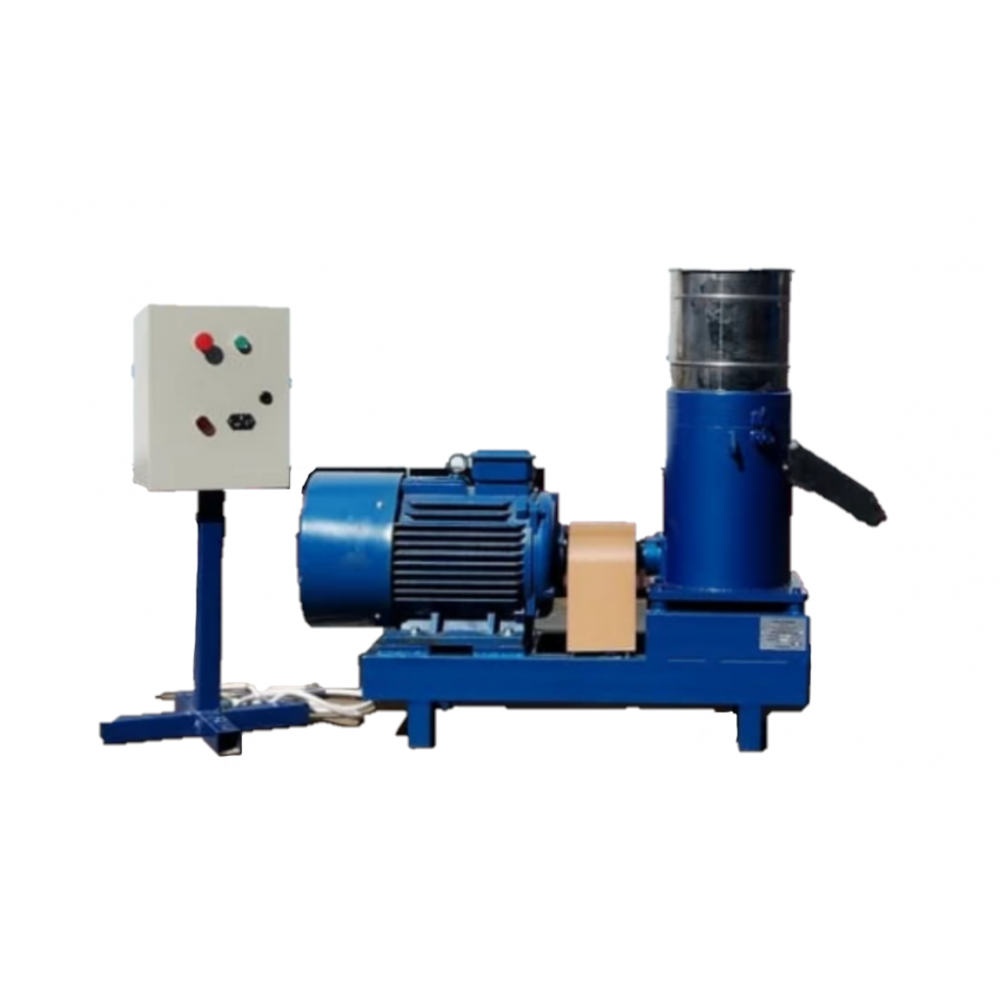

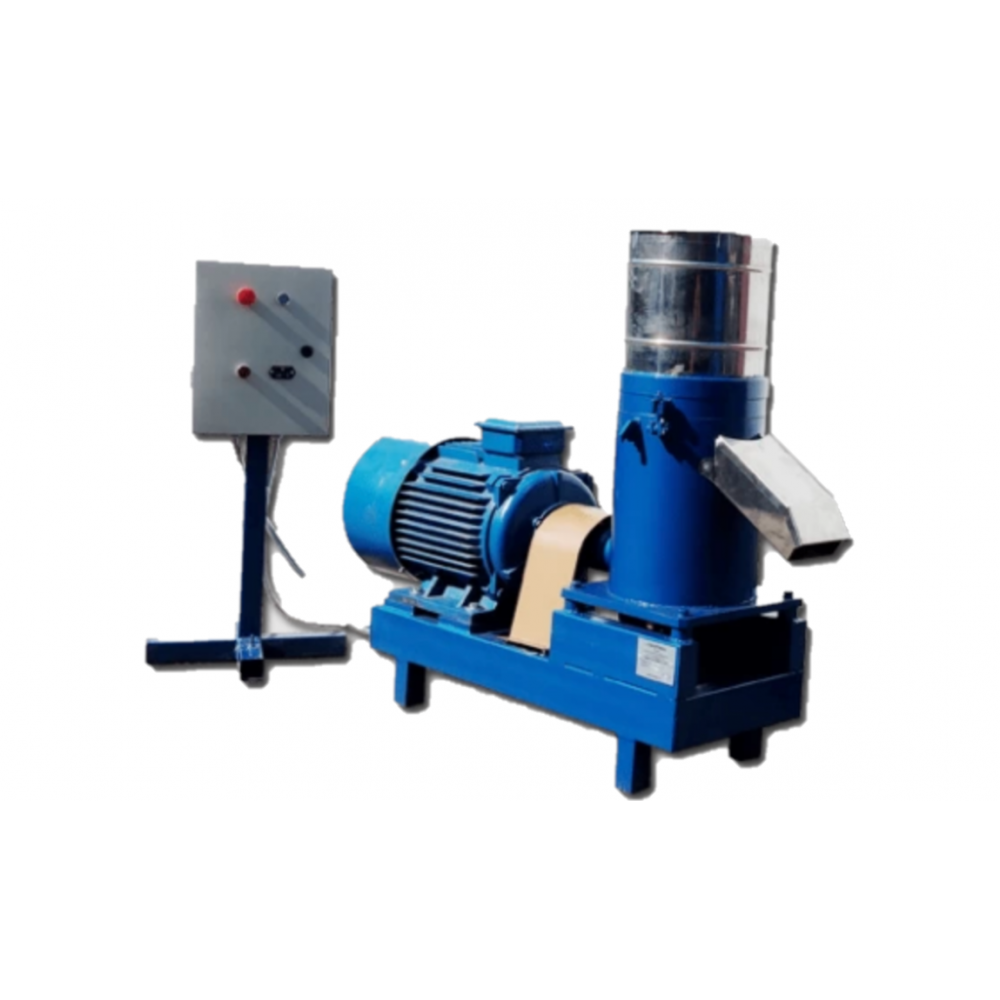

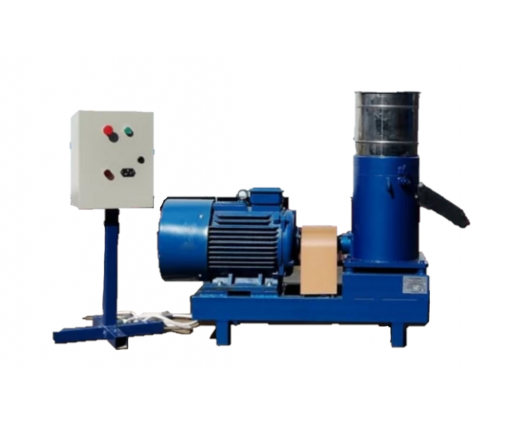

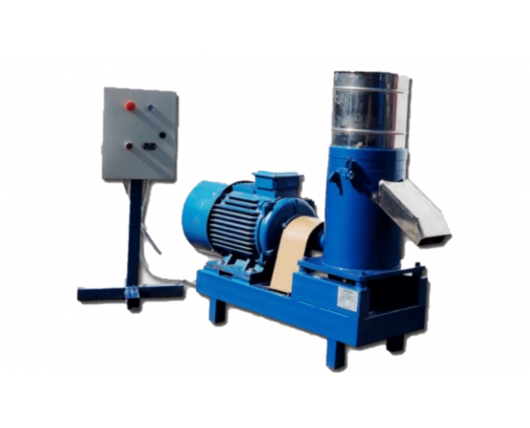

Granulator Ultra-280 / 22 kW pellet mill

The Ultra-280 pellet mill is a reliable and efficient machine designed for the production of wood pellets, compound feed, and biomass from straw or hay. Engineered for use in farms, production facilities, and biomass processing plants, it combines high performance, low energy consumption, and long-term reliability.

Equipped with a 22 kW / 380 V motor, it ensures stable operation and optimal productivity under continuous load.

Key Advantages

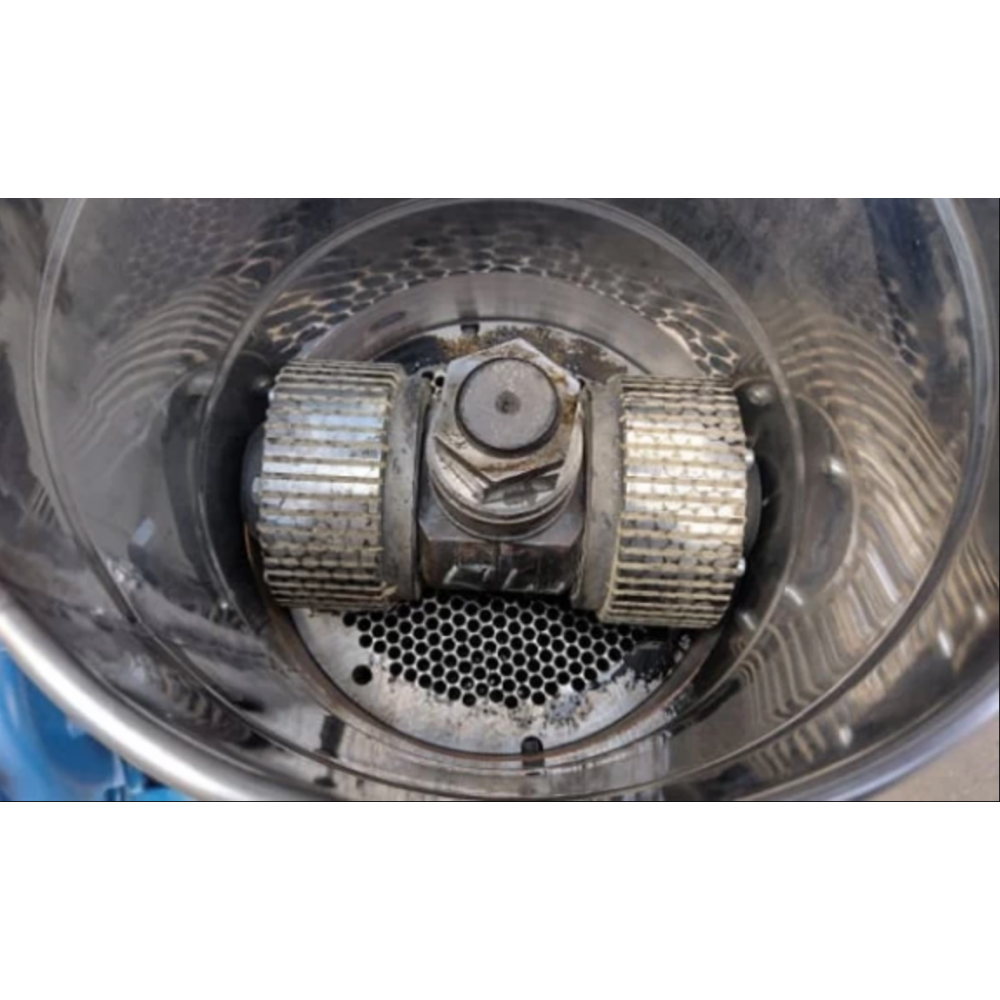

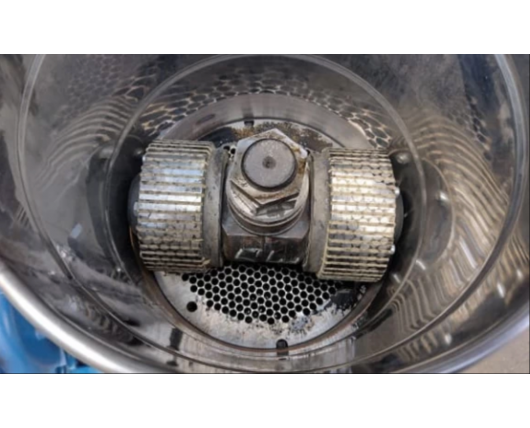

Durable industrial design – the die and rollers are made of 18KhGT steel, carburized and hardened to 62 HRC, ensuring many years of trouble-free operation.
Precision drive system – the hypoid gearbox provides smooth, quiet operation with reduced vibration and extended component lifespan compared to standard gear transmissions.
Modern control panel – equipped with an ammeter, thermal switch, and electromagnetic overload protection, ensuring operator safety and motor protection.
High production efficiency – capacity up to 300 kg/h of pellets, 500 kg/h of feed, and 250 kg/h of plant biomass.
Accurate raw material processing – the reinforced press and precision-drilled die ensure dense, uniform granules.

In-house manufacturing – all key components, including the gearbox, dies, and rollers, are made from alloy steel and heat-treated for maximum durability and reliability.

Technical Specifications

Motor power: 22 kW
Power supply: 380 V (three-phase, 44 A)
Die diameter: 280 mm

Output capacity:

• Pellets – up to 300 kg/h

• Feed – up to 500 kg/h

• Straw / hay – up to 250 kg/h

Dimensions: 1300 × 500 × 1300 mm
Weight: 500 kg

The Ultra-280 pellet mill is a professional, heavy-duty solution for farms and production facilities that wish to produce their own high-quality pellets or feed. Combining industrial power, operational safety, and exceptional durability, it represents a long-term investment in efficient and independent production.

Specification

Product dimensions

Length 1300,0 (mm)

Width 500,0 (mm)

Height 1300,0 (mm)

Features

Product Weight 500,0 (kg)

Producer LabEcoTech

Usage For loose materials

Efficiency Pellets - 300 kg / h Feed - up to 500 kg / h Straw / Hay - up to 250 kg/h

Energy consumption 22 (kW)

Tension 380,0 (V)

Drive type Electric

Matrix size 280,0 (mm)

Number of knives 2 (pcs.)

Additional information

Guarantee 12 month

Number of rollers 2 (pcs.)

Video review

The kit includes:

Granulator 1 pcs
Manual 1 pcs
Matrix 2-8 mm (By choice) 1 pcs
