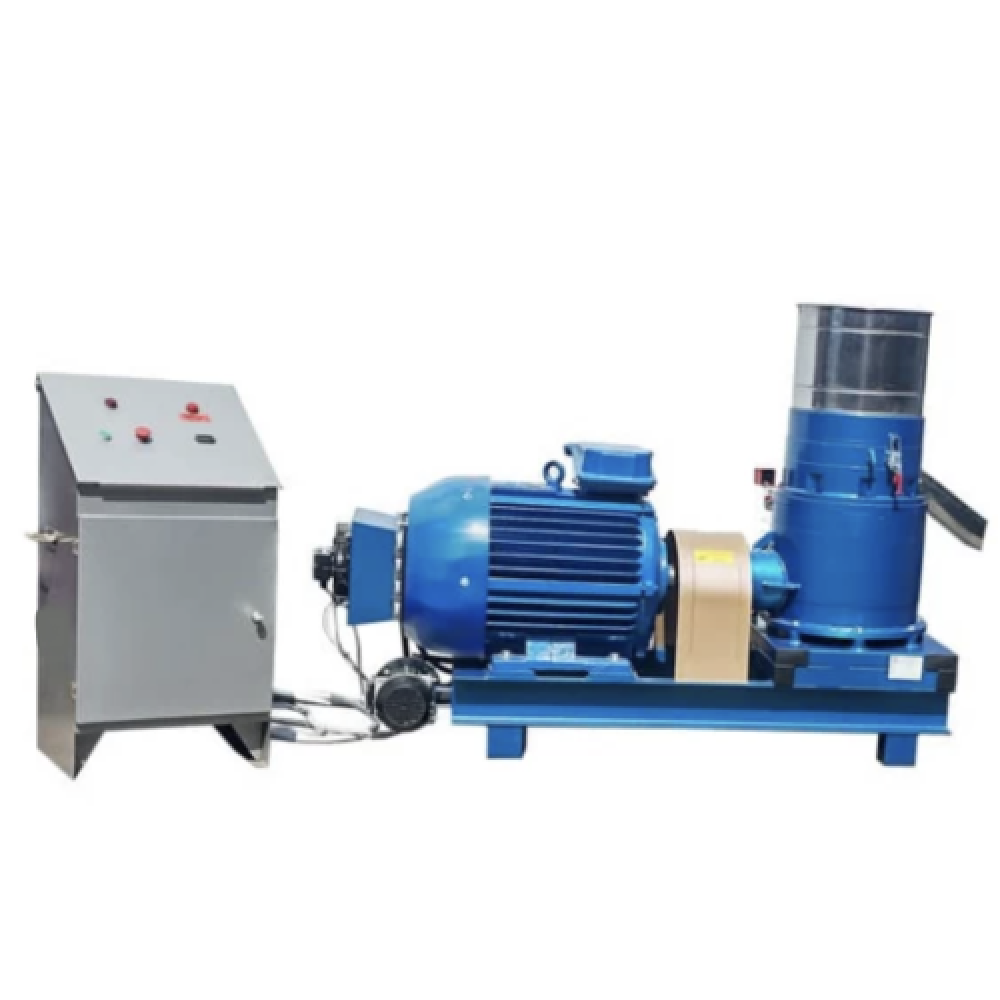

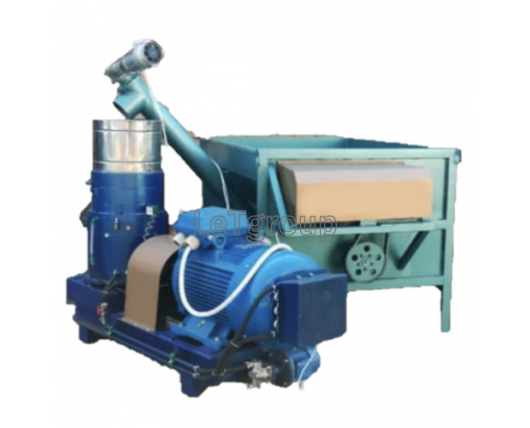

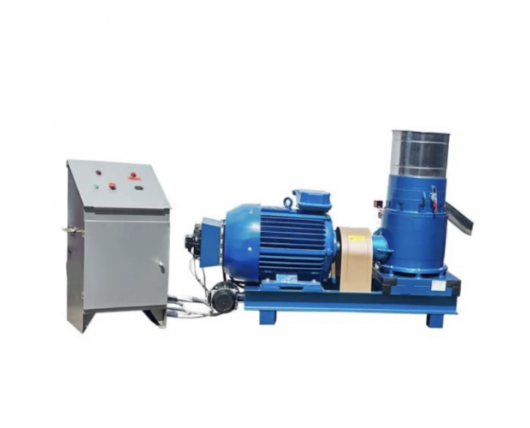

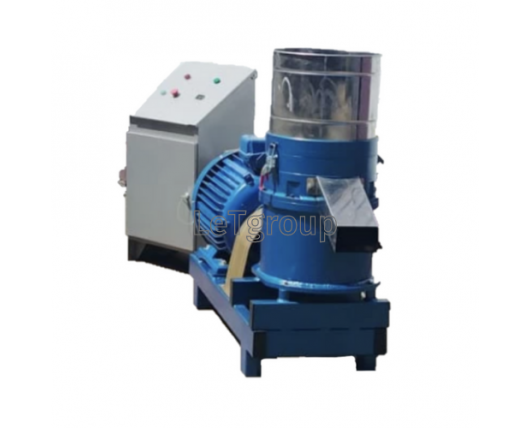

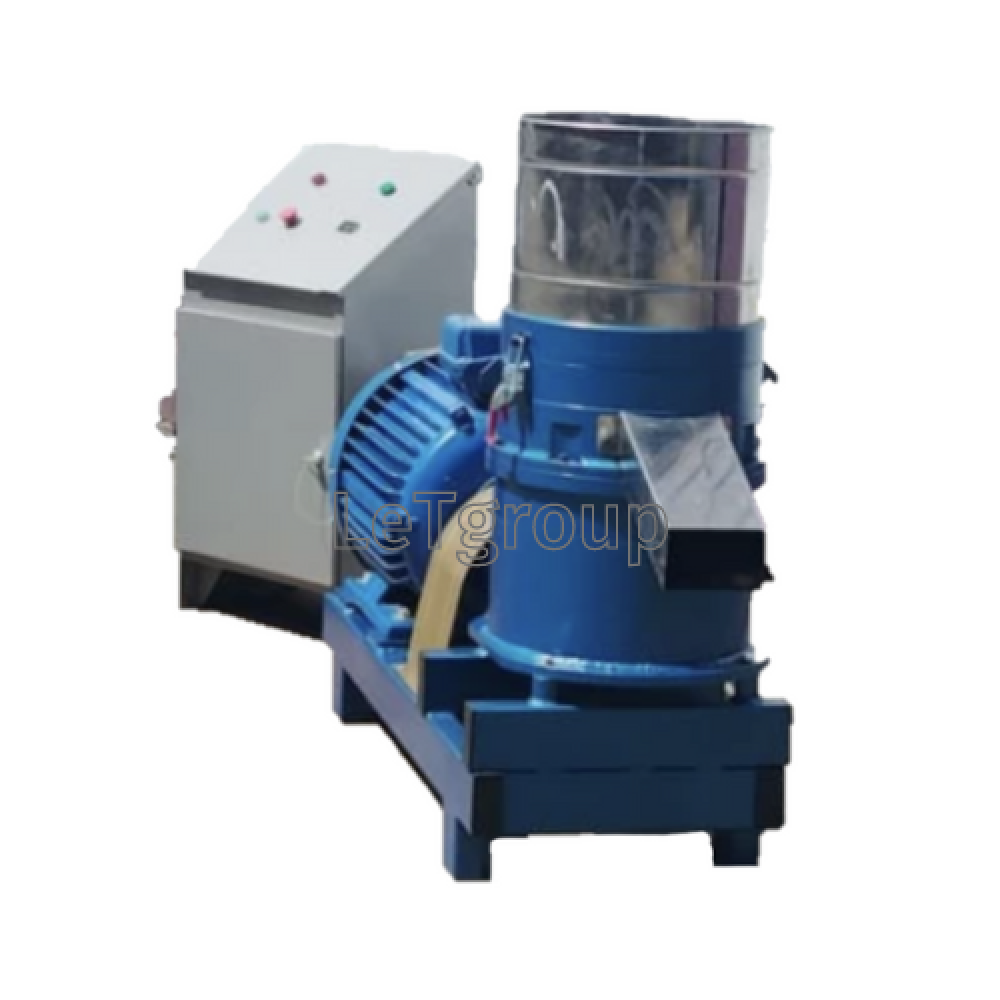

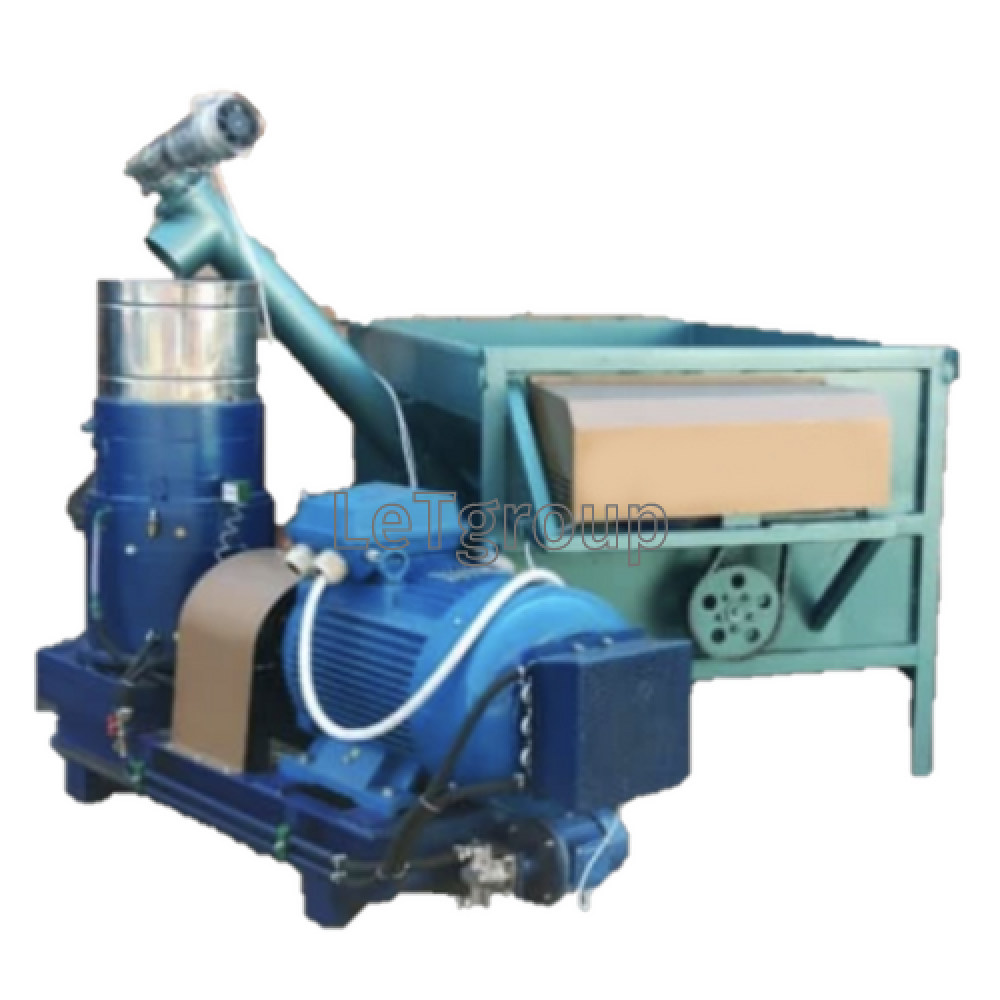

Pellet machine / Pellet granulator Ultra-400 / 37 kW

Ultra-400 Pellet Mill – Industrial Granulator, 37 kW

The Ultra-400 is a high-performance industrial granulator designed for large enterprises and production facilities manufacturing wood pellets, animal feed, and biomass. The machine is engineered for continuous 24/7 operation, ensuring high efficiency with all types of plant-based raw materials, including sawdust, straw, hay, cereal mixtures, and other bulk materials.

Thanks to its robust construction, innovative mechanical solutions, and advanced die processing technology, the Ultra-400 guarantees reliability, longevity, and minimal operating costs.

Key Advantages of the Ultra-400 Granulator

Industrial drive durability – The granulator features a gear transmission with high torque and gear ratio, enhanced hypoid gears with a 10-tooth module, and high bending resistance. This ensures stable operation even under heavy load and continuous use.

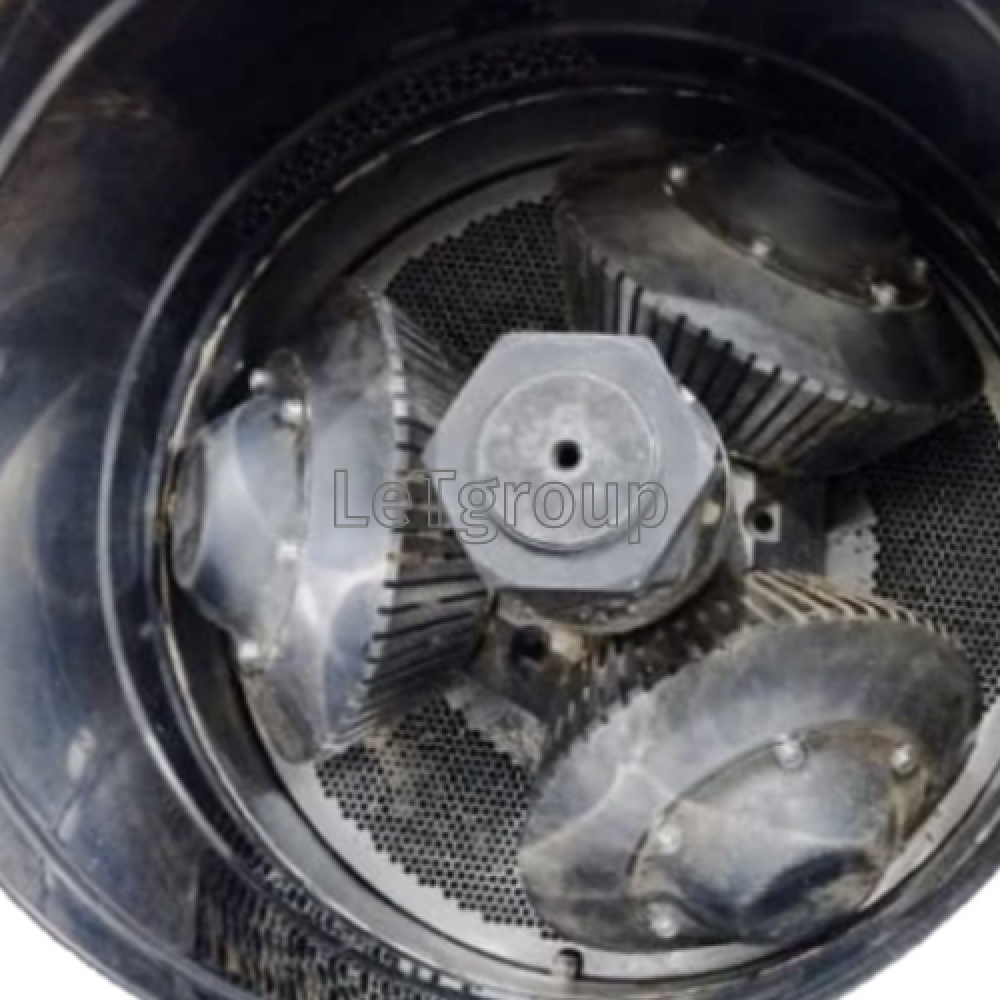

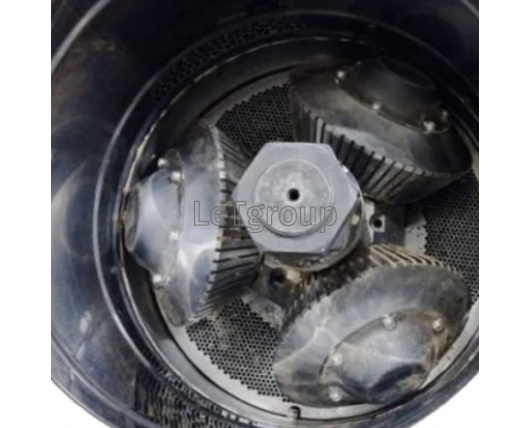

Advanced roller and bearing system – The 3-roller pressing mechanism reduces stress on dies and rollers, extending the service life of consumable parts. Tapered pressing rollers with brass ZKL bearing cages protect the mechanisms from raw material ingress and allow continuous operation without rapid wear.
Oil cooling system – An efficient cooling system protects critical components from overheating, minimizes gearbox wear, and prevents malfunctions during prolonged production, enabling the granulator to operate continuously at full capacity.
Precision and durable die – The die is CNC-machined, carburized, and hardened to 56–60 HRC, ensuring precise hole shapes and high wear resistance.
Versatile application – The Ultra-400 can produce wood pellets, animal feed, and biomass from various raw materials. The finished pellets have uniform structure and high density, providing longer storage life and improved combustion or nutritional properties.

Technical Specifications

Motor Power: 37 kW
Voltage: 380 V
Die Diameter: 400 mm
Capacity: Pellets – 400–500 kg/h; Feed – 600–800 kg/h; Straw / Hay – up to 450 kg/h
Drive Type: Electric
Dimensions (L × W × H): 1700 × 500 × 1600 mm
Weight: 1200 kg

The Ultra-400 is an advanced industrial granulator combining industrial power, durability, and reliability. With modern technical solutions, reinforced drive components, and precision die processing, it is capable of 24/7 operation at maximum efficiency, making it an optimal investment for large enterprises and processing plan

Specification

Product dimensions

Length 1700,0 (mm)

Width 500,0 (mm)

Height 1600,0 (mm)

Features

Product Weight 1200,0 (kg)

Producer LabEcoTech

Usage For loose materials

Efficiency Pellets - 400-500 kg / h Feed - up to 600-800 kg / h Straw / Hay - up to 450 kg/h

Energy consumption 37 (kW)

Tension 380,0 (V)

Drive type Electric

Matrix size 400,0 (mm)

Number of knives 2 (pcs.)

Additional information

Guarantee 12 months

Number of rollers 3 (pcs.)

Video review

The kit includes:

Granulator 1 pcs
Manual 1 pcs
Matrix 2-8 mm (By choice) 1 pcs
